Akamai Edge-side personalization

You can use Akamai to classify visitors and execute personalization instructions on the edge. This approach gives you the user experience benefits of server-side rendering with the performance and scalability benefits of a CDN.

tip

For more information about the benefits of executing personalization using Akamai EdgeWorkers, see the overview of edge-side personalization.

Before you start

You must have the following available to complete the instructions in this section:

  1. Entitlement for EdgeWorkers in your Akamai contract. Akamai documentation has more details.
  2. Administrator access to Akamai Control Center.
  3. Ability to clone a GitHub repository.
  4. Node.js v16+ installed locally.
  5. An application with edge-side personalization activated.
  6. Npm access token from Uniform. Edge-side personalization requires private packages. If you don't have an access token, contact us.

The Akamai CLI enables you to send commands to Akamai without having to log into the Akamai Control Center. Entering commands on the CLI is faster than having to navigate through a lot of different screens in the Control Center.

tip

All the required configuration can be accomplished using the Akamai Control Center, which gives you a GUI to work in. Using the CLI allows you to write scripts to automate the configuration, backup and recovery processes.

Akamai also offers an API that you can use as an alternative to the CLI.

An API client provides the credentials the CLI will use in order to send commands to Akamai. You can create an API client in the Akamai Control Center.

  1. Identify the home directory on your local machine.

    CLI

    cd ~

    About this step

    The CLI runs on your local machine. It uses settings from a file located in your home directory.

  2. Create a file in your home directory .edgerc

  3. Add the following to the file:

    [papi] [default]

  4. Log into the Akamai Control Center.

  5. Navigate to ACCOUNT ADMIN > Identity & access.

  6. Click Create API client.

  7. For the API client type select Myself.

  8. Click Quick.

  9. Find the section Credentials.

  10. Click Copy credential.

  11. Paste the contents of your clipboard into the file .edgerc under the sections papi and default. The file should look like the following:

    [papi] client_secret = ???????????????????????????????????????????? host = ?????????????????????????????????????????????????????????? access_token = ????-????????????????-???????????????? client_token = ????-????????????????-???????????????? [default] client_secret = ???????????????????????????????????????????? host = ?????????????????????????????????????????????????????????? access_token = ????-????????????????-???????????????? client_token = ????-????????????????-????????????????

  12. Save the file.

The Akamai CLI is a small program that must be installed on your local machine.

  1. Install the Akamai CLI.

  2. Open a CLI & enter the following commands:

    akamai install edgeworkers akamai install property-manager

    About this step

    The CLI is a generic tool. You have to install the functionality you want to use. This adds the commands to interact with EdgeWorkers and the Property Manager.

Before you can create a new property in Akamai, there are a few settings you must retrieve using the CLI:

SettingRetrieval instructionsMore information
Contract IDGet contract IDAkamai docs
Product IDGet product IDAkamai docs
Group IDGet group IDAkamai docs
Resource tierGet resource tierAkamai docs
akamai property-manager list-contracts --format json

You will get a response like the following:

[ { "contractId": "ctr_P-1234567", "contractTypeName": "DIRECT_CUSTOMER" } ]

About this step

Using the example above, the contract is P-1234567. You must remove the ctr_ from the value.

akamai property-manager list-products \ --contractId <YOUR CONTRACT ID> \ --format json

You will get a response like the following:

[ { "productName": "Fresca", "productId": "prd_Fresca" } ]

Using the example above, the product ID is Fresca. You must remove the prd_ from the value.

akamai property-manager list-groups --format json

You will get a response like the following:

[ { "groupName": "engineering", "groupId": "grp_2222222", "parentGroupId": "grp_1111111", "contractIds": [ "ctr_P-1234567" ] }, { "groupName": "My-Company-P-1234567", "groupId": "grp_1111111", "contractIds": [ "ctr_P-1234567" ] } ]

Using the example above, the available group IDs are 1111111 and 2222222. You must remove the grp_ from the value.

About this step

If you are unsure which group ID to use, select the one with a group name that matches your contract ID. that's the top-level group.

akamai edgeworkers list-restiers --contractId <YOUR CONTRACT ID>

The response is more complex than the responses for the other CLI commands. There is a numbered list of resource tiers, and under each tier is a detailed description of the features of that tier.

In the example below, the resource id is 200:

---------------------------------------------------------------------------- --- The following Resource Tiers available for the contract id P-1234567 --- ---------------------------------------------------------------------------- 1. ResourceTier 200 - Dynamic Compute Maximum CPU time during initialization: 60 ms Maximum wall time during initialization: 200 ms Maximum memory usage per event handler: 1.5 MB Maximum CPU time per event handler: 10 ms Maximum wall time per event handler: 4 s ...

An EdgeWorker ID uniquely identifies your EdgeWorker. Even though you haven't created the EdgeWorker yet, you can still create the ID and associate the EdgeWorker with the ID later.

  1. Determine a name for your EdgeWorker.

    About this step

    You might want to use your domain name to make it easy for other Akamai administrators to understand the purpose of the EdgeWorker.

  2. In the CLI, enter the following command:

    akamai edgeworkers create-id \ <GROUP ID> <EDGE WORKER NAME> \ --resourceTierId <RESOURCE TIER ID>

    About this step

    Unlike in other places when you specify the group ID, in this command you don't use the --groupId switch.

  3. The output from the command will include a value edgeWorkerId. Note this value. You will need it when you create your Akamai property.

Clone the following repository:

https://github.com/uniformdev/examples

About this step

This repository includes files that you will use to configure an EdgeWorker and property in Akamai. The files are located in the folder examples/context-edge-akamai.

Uniform provides the source code for a fully functional EdgeWorker that executes Uniform personalization instructions.

tip

Review the Akamai EdgeWorkers User Guide for a detailed tutorial on how to create an EdgeWorker.

  1. Open a terminal window in the following folder in the root of the repository you cloned:

    examples/context-edge-akamai/worker

  2. Enter the following command:

    npm install

  3. Create a file .env with the following environment variables:

    Variable nameValue
    AKAMAI_WORKER_IDThe EdgeWorker ID you created in the previous section.
    AKAMAI_WORKER_NETWORKThe Akamai network you want to activate the EdgeWorker on. This must be one of the following:
    • STAGING
    • PRODUCTION
    AKAMAI_WORKER_VERSION_INCREMENTThe script automatically increments the EdgeWorker version number. This variable determines how the new version number is determined. This must be one of the following:
    • major changes 1.0.0 to 2.0.0
    • minor changes 1.0.0 to 1.1.0
    • patch changes 1.0.0 to 1.0.1
    UNIFORM_PROJECT_IDThe Uniform project whose manifest is retrieved.
    UNIFORM_API_KEYThe Uniform API key used to retrieve the manifest.

The repository you cloned contains a number of scripts that automate the process of deploying an EdgeWorker.

tip

You don't have to use these scripts. You can deploy the EdgeWorker using whatever tools and approach you prefer.

  1. Enter the following command:

    npm run worker:version:prepare

    About this step

    This npm script:

    • Downloads the Uniform manifest.
    • Increments the version number for the EdgeWorker.
    • Builds the EdgeWorker.

  2. Enter the following command:

    npm run worker:version:deploy

    About this step

    This npm script:

    • Creates the TAR archive file.
    • Uploads the file to Akamai using the Akamai CLI.
    • Builds the EdgeWorker.

  3. Enter the following command:

    npm run activate:version

    About this step

    This npm script activates the new version of the EdgeWorker on the specified Akamai network using the Akamai CLI.

  4. The EdgeWorker can take 15 minutes or longer to activate. You can check the status of the activation process using the following command:

    npm run worker:status

    About this step

    When the status for your version is COMPLETE, and it is the version at the top of the list (or has the greatest value for activationId), that means your version is active.

Akamai runs personalization by making a request to the origin (like your web application) and executing the personalization instructions associated with that page (such as what you have configured using Uniform Context).

You have several options for where to deploy your web application.

tip

As long as Akamai can access your web application using HTTPS, you can host your app anywhere you like. The options described below are popular options.

NetStorage is Akamai's globally distributed cloud storage solution. You can use NetStorage as the origin and use Akamai as both a host and a CDN.

Coming soon

These instructions assume the following:

  • Your web application is already deployed to an S3 bucket.
  • Cloudfront is configured to provide public access to the contents of the S3 bucket using HTTPS.
  • You have administrator access to the S3 bucket and Cloudfront.

  1. In Cloudfront, open your distribution.

  2. Copy the Distribution domain name.

    About this step

    This is the URL you can use to access your site through Cloudfront. To Akamai, this URL is the origin. The hostname from the URL is the value you will need when configuring Akamai.

Akamai has a partnership with Microsoft that enables high-speed access to Azure resources from Akamai's network. As a result, Akamai can use an Azure Static Web App as the origin without the kind of network latency you might expect when multiple clouds are involved.

Coming soon

To serve files to your visitors, Akamai needs a certificate that matches your domain name. Akamai supports multiples types of certificates.

A SAN certificate is a single certificate that can support multiple domains. By adding your hostname as a subject alternative name (SAN) on the certificate, Akamai can use this certificate with your domain.

  1. Log into Akamai Control Center.

  2. Navigate to CDN > Certificates.

  3. In the row for your certificate, click Actions > View and Edit Certificate.

  4. In the section Enter Certificate Information, click Edit.

  5. In the field SAN (optional), enter the hostname for your site.

    About this step

    This should be the hostname visitors use to access your site.

  6. Click Update.

  7. Click Submit.

  8. Click Go.

  9. Click Validate Domain Control.

    About this step

    Akamai gives you several options for how you can prove that you have control of the domain. Follow the instructions you prefer.

  10. Click Check status now.

    About this step

    You should see Valid next to the hostname in the list of domains.

  11. Akamai submits a request for a certificate to be generated and deployed. This can take 15 minutes or longer. But eventually you will see your certificate has been deployed to production.

In Akamai, a property represents all the configuration that Akamai uses to determine how to handle requests for your web application. This includes things like when to use caching and when to use the EdgeWorker.

When you create your Akamai property, you must specify a CP code. This value allows you to classify the traffic Akamai handles, which is useful for billing, reporting, logging and other purposes.

You can create a new CP code or use an existing one.

You can create a new CP code using the CLI.

  1. Enter the following command:

    akamai property-manager create-cpcode \ --contractId <YOUR CONTRACT ID> \ --groupId <GROUP ID> \ --productId <PRODUCT ID> \ --cpcodeName <CP CODE NAME>

    About this step

    This command creates the new CP code, but it displays no output. You must run another command to get the CP code ID.

  2. Enter the following command:

    akamai property-manager list-cpcodes \ --contractId <YOUR CONTRACT ID> \ --groupId <GROUP ID>

    About this step

    This is the same command from the previous section. You will see your new CP code in the list. The CP code ID is follows cpc_. You must remove the cpc_ from the value.

This section covers how to create a new property in Akamai.

info

If you already have a property that you want to use, skip to Import Property.

Enter the following command:

akamai property-manager new-property \ --contractId <YOUR CONTRACT ID> \ --groupId <GROUP ID> \ --productId <PRODUCT ID> \ --property <PROPERTY NAME>

About this step

This will create a new property in Akamai and create a folder on your machine with property name. In this folder you will find a number of files that contain the various default settings that Akamai uses for new properties.

info

If you created a new property in the previous section, skip to Update Property.

warning

You can use an existing Akamai property if you like, but you will be replacing most of the settings on the property. If the property is used for other purposes, you should review the changes described in this documentation carefully.

Enter the following command:

akamai property-manager import --property <PROPERTY NAME>

About this step

This creates a folder on your machine with property name. In this folder you will find a number of files that contain the various settings that are current configured on the property.

Regardless of whether you created a new property or are using an existing property, the property already has some configuration settings. These settings need to be updated in order for the EdgeWorker (which you still haven't created yet) to be used.

  1. Enter the following command:

    akamai property-manager set-default --property <PROPERTY NAME>

    About this step

    From now on, when you enter commands on the CLI, if you don't specify a property explicitly, this property name will be used.

  2. Delete the files in the folder config-snippets.

    About this step

    These files represent the current property settings. You will replace these settings.

  3. In the repository you cloned, copy the files from examples/context-edge-akamai/cli/property/config-snippets to the folder you deleted the files from in the earlier step.

  4. Open the file config-snippets/main.json.

  5. Replace the following placeholders with the settings you retrieved earlier:

    <ORIGIN HOSTNAME>
    <CP CODE NAME>
    <PRODUCT ID>
    <CP CODE NAME>

  6. Open the file config-snippets/EW_HTML_Pages.json.

  7. Replace the following placeholders with the settings you retrieved earlier:

    <EDGEWORKER ID>

  8. Enter the following command:

    akamai property-manager save

    About this step

    This will update the property in Akamai using the settings from your local files.

info

In most cases this section only applies if you created a new property. An existing property will probably already have a hostname configured. If your property has a properly configured hostname, you can skip this section.

  1. Log into Akamai Control Center.

  2. Navigate to CDN > Properties.

  3. Click your property.

  4. Click on the latest version.

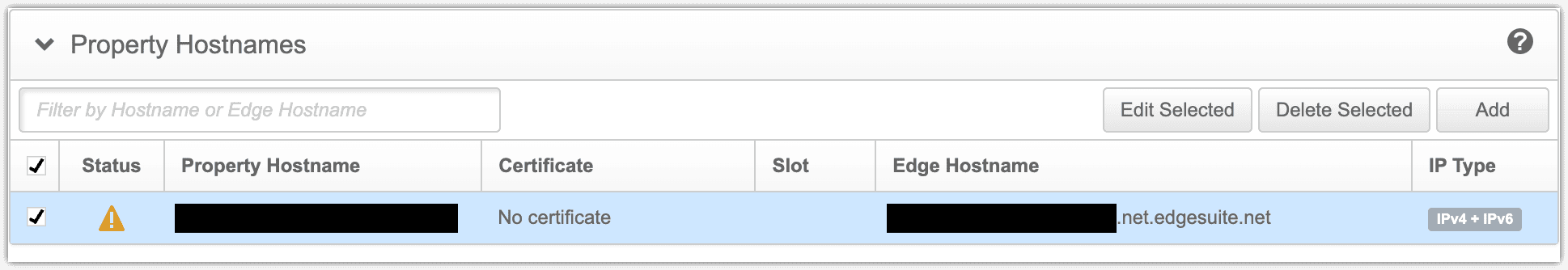

  5. In the section Property Hostnames, tick the checkbox next to your hostname.

    property-hostnames-before

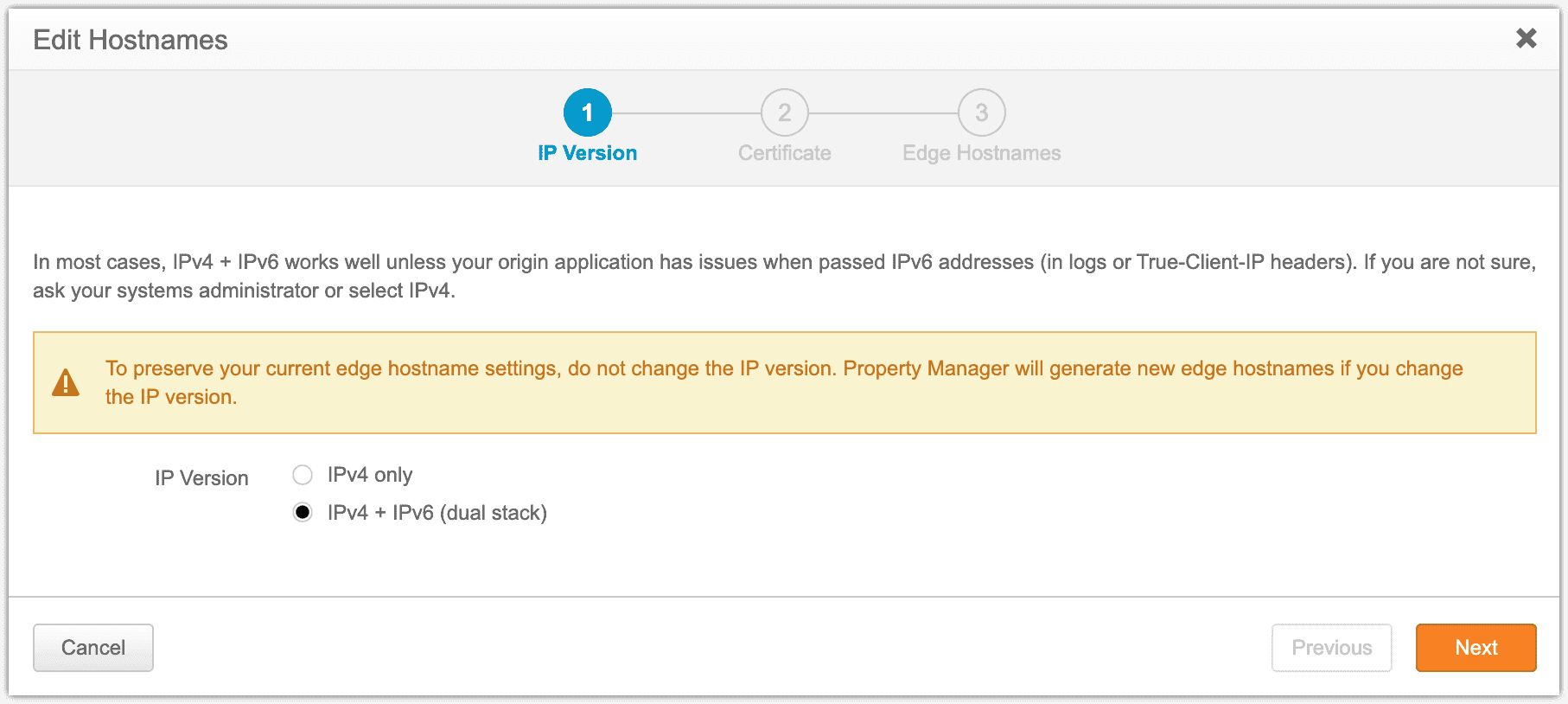

  6. Click Edit Selected.

  7. Click Next.

    edit-hostnames

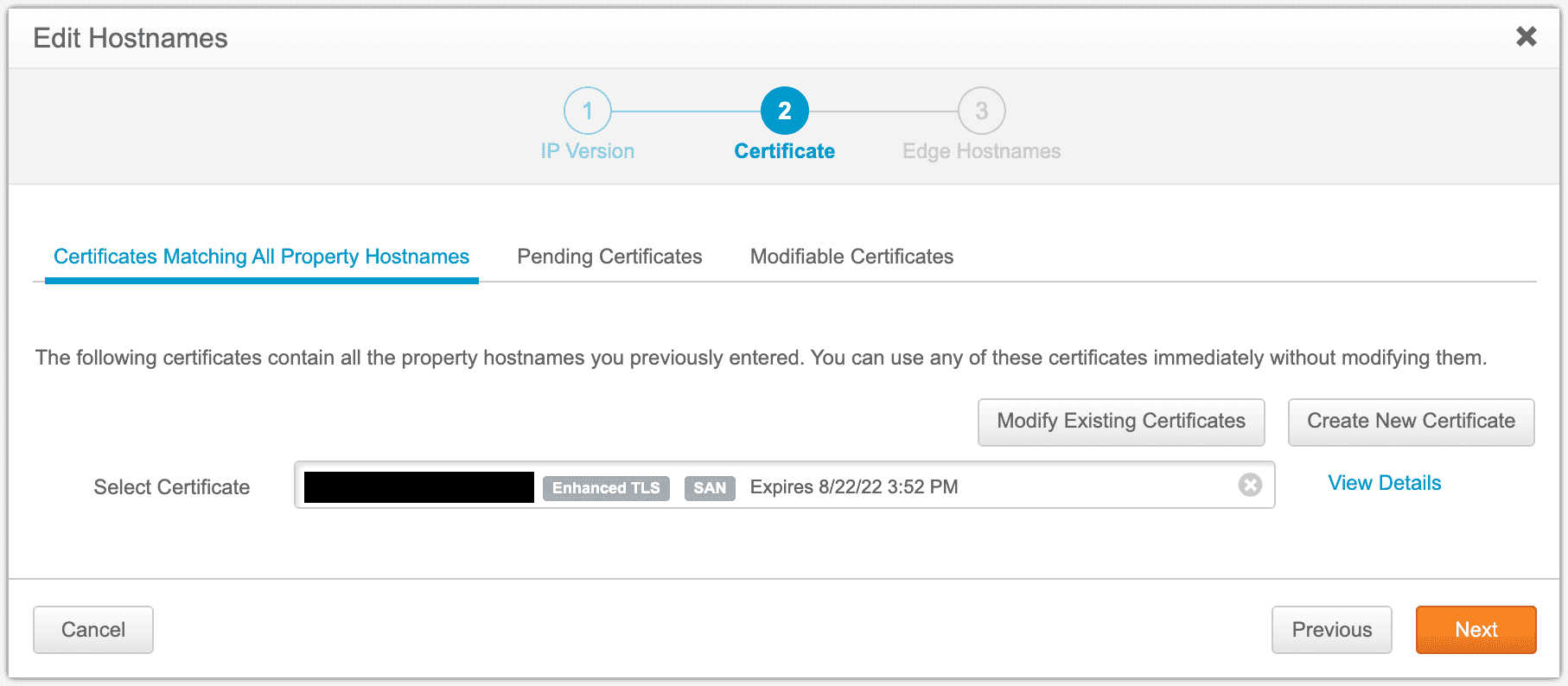

  8. Select your certificate.

    select-certificate

  9. Click Next.

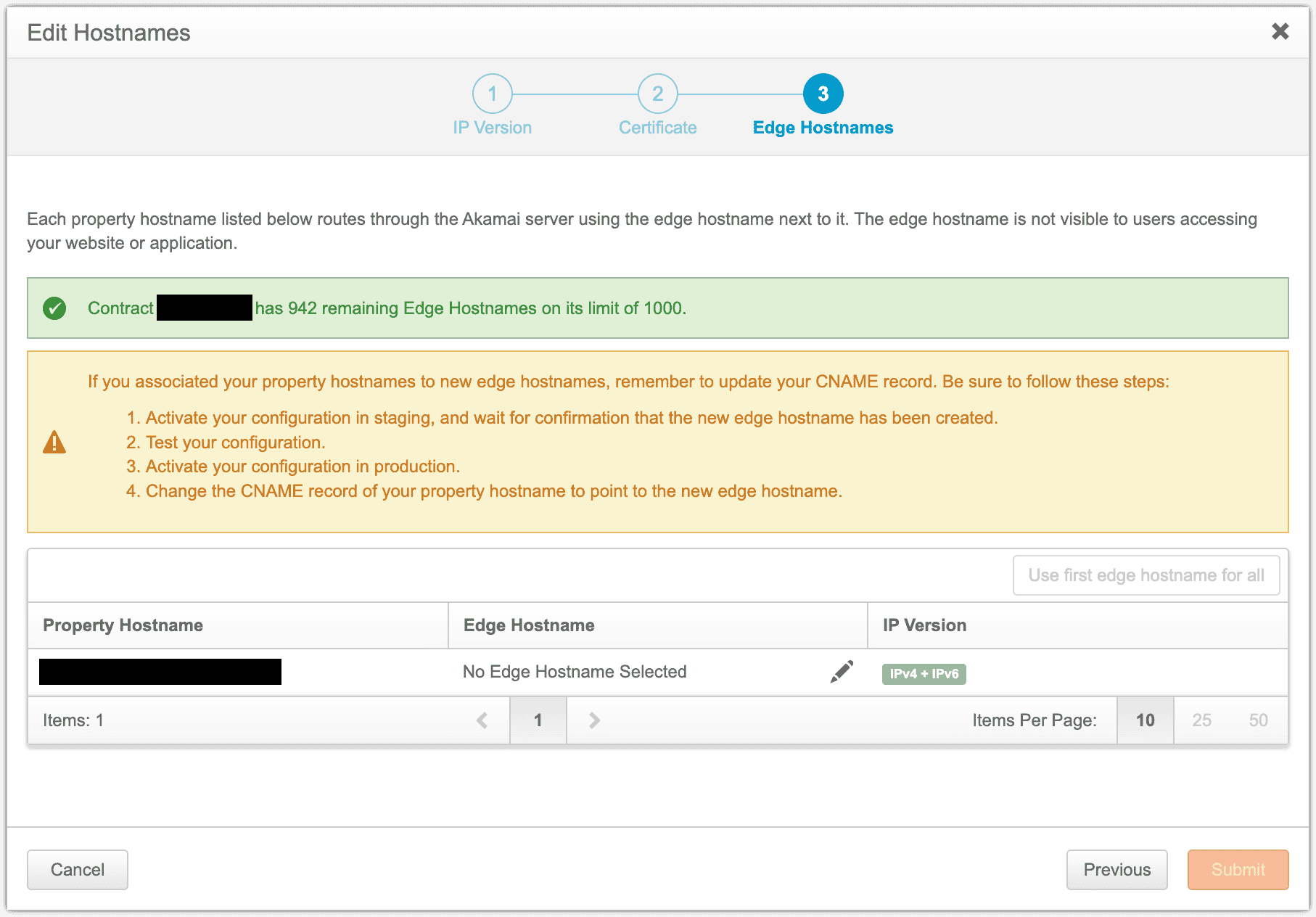

    hostname-not-set-on-property

  10. Click the pencil icon next to No Edge Hostname Selected.

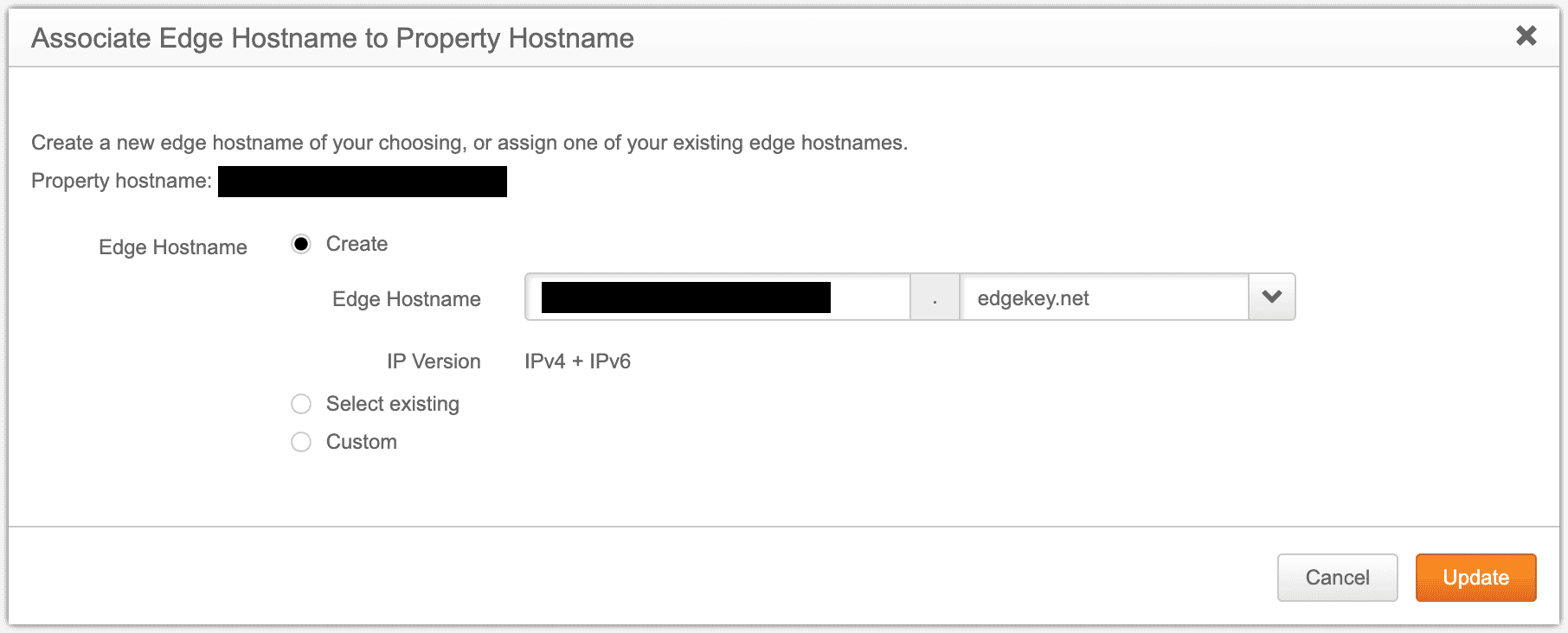

  11. Enter a value for the field Edge Hostname:

    associate-edge-hostname-to-property-hostname

    About this step

    This is the hostname that Akamai uses across its own network. You will update DNS for your domain to map this internal hostname to the public hostname that visitors use to access your site.

  12. Click Update.

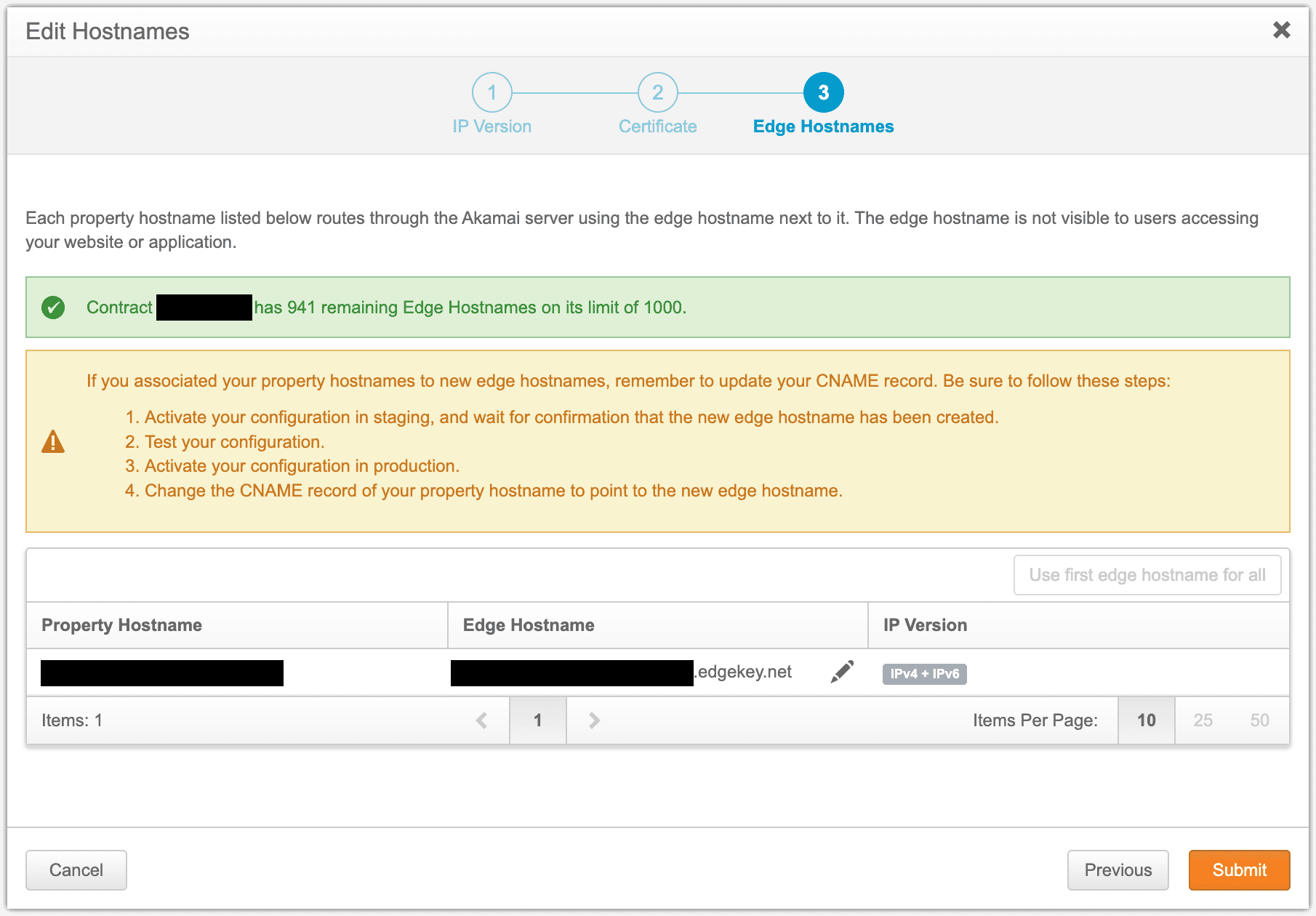

    hostname-set-on-property

    About this step

    In your DNS, add a CNAME record for your property hostname to associate the Akamai edge hostname.

  13. Click Submit.

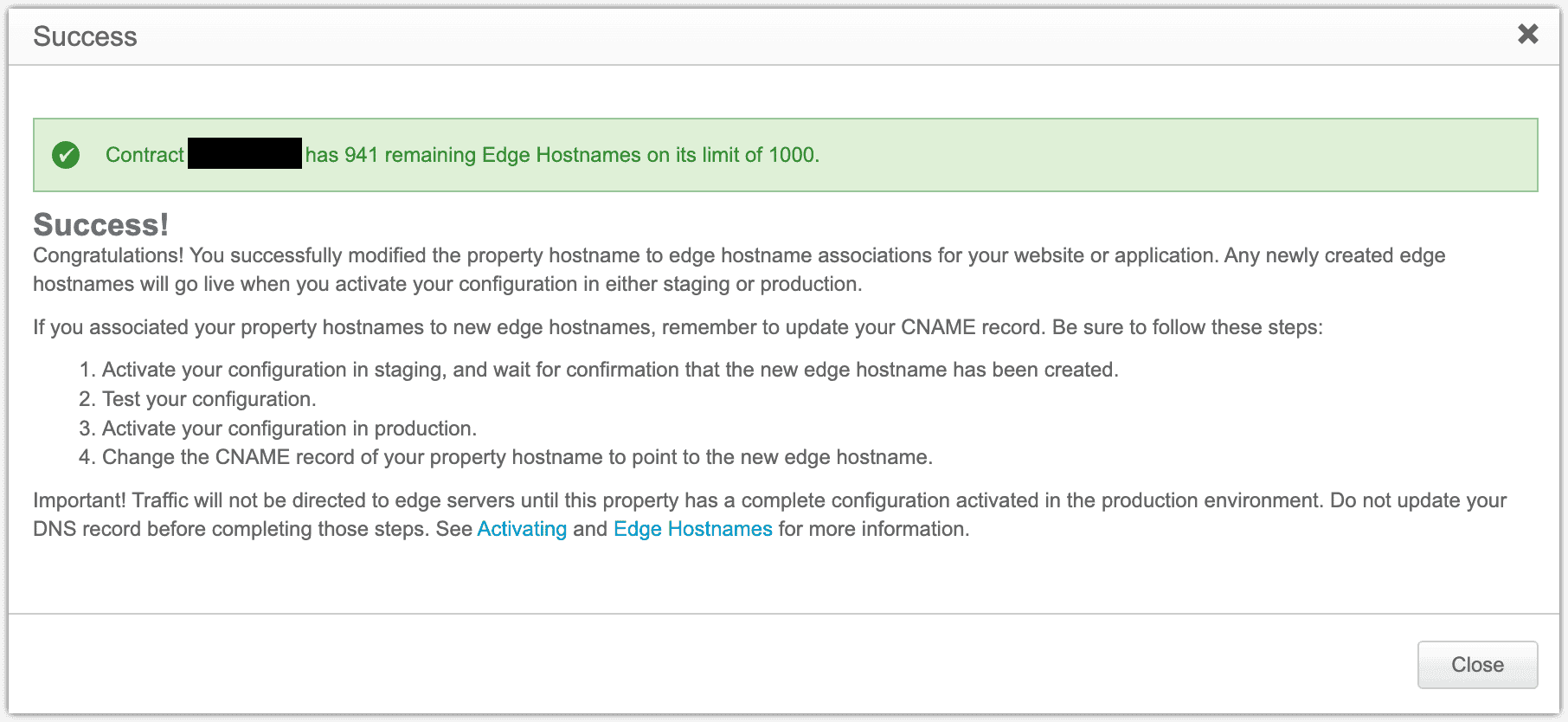

    property-hostname-modified-success

  14. Click Close.

  15. Click Save.

Before your changes are available on Akamai, you must activate your property. You can activate on either the staging or production environment by entering the appropriate command:

akamai property-manager activate -n staging

About this step

It can take 15 minutes or longer for the property to be activated. You can check the activation status using the following command:

akamai property-manager cs
