Use parameters

After you install the OrderCloud integration, the following parameter types are available. You can use these to incorporate content from OrderCloud into your components and compositions.

Parameter typeDescription
OrderCloud Product QuerySpecify search criteria that is used to select a single or multiple products from OrderCloud.
OrderCloud Product SearchSelect one or more products from OrderCloud.

OrderCloud Product Query

This parameter type allows a Uniform user to configure a query that will determine the OrderCloud products that are retrieved.

Add parameter to component

In order to allow a user to configure a query to determine the products from OrderCloud to retrieve, you must add a parameter to a component. The parameter is used to store the query settings used to perform the search.

  1. In Uniform, navigate to your component.

  2. Add a new parameter using the parameter type OrderCloud Product Query.

  3. The following values can be specified:

    NameDescription
    CatalogsThe catalog where the products are defined.
    Product categoriesAfter you select a catalog, a list of product categories is displayed. By default, no categories are selected, which means that any kind of products can be selected. If you want to limit the types of products that can be selected, click one or more of the product categories listed.
    Display field (optional)In Uniform, this parameter type displays a list of products. By default, the product name is displayed. This field lets you change that so a different product property is displayed.
    parameter-config
    OrderCloud Product Query parameter configuration.

Edit parameter value

When you use a component with a OrderCloud Product Query parameter, by default no product will be selected. You are prompted to select a product.

Configuring this parameter type involves specifying the way a product search should work. You are able to control the following search settings:

FieldDescription
Product CategoryOnly products associated with the selected shipping category are included.
KeywordOnly products whose names match the specified keyword(s) are included.
CountThe maximum number of products that are returned.
SortThe product property used to sort the products that are returned.
Sort OrderWhether the products should be sorted in ascending or descending order.
edit-parameter-value
Example of the editing interface for an OrderCloud Product Query parameter on a component.

Configure an enhancer

When a product query is configured, Uniform only stores the search criteria, not the results of the search. Your front-end application must perform the search using that criteria. Uniform provides an enhancer to simplify this process.

tip

Using the enhancer provided by Uniform saves you from having to write logic to interact directly with OrderCloud.

How Uniform stores the search criteria

The following is an example of what Uniform stores for the parameter.

{
"type": "ordercloud-product-query",
"value": {
"options": {
"count": 1,
"categories": [],
"brand": "",
"keyword": "",
"sort": "date_modified",
"sortOrder": "desc"
},
"catalogId": "######################"
}
}

The product search criteria is stored as the value.

Add the enhancer

Uniform provides an enhancer so you don't need to write the API calls to OrderCloud to perform the product search.

tip

For more information about the enhancer, see the package documentation.

  1. Add the following npm packages to your front-end application:

    @uniformdev/canvas
    @uniformdev/canvas-ordercloud
  2. In a text editor, open the file where you retrieve the composition definition from Uniform.

    About this step

    You are looking for the code calls the async function getComposition. The code below assumes the object returned is set in a variable composition.

  3. Add the following import statements:

    import { EnhancerBuilder, enhance } from '@uniformdev/canvas';
    import {
    createEnhancer,
    OrderCloudClient,
    ORDERCLOUD_PARAMETER_TYPES,
    } from '@uniformdev/canvas-canvas-ordercloud';
  4. Add the following code:

    const client = new OrderCloudClient({
    clientId: '!!! YOUR ORDERCLOUD CLIENT ID !!!',
    clientSecret: '!!! YOUR ORDERCLOUD CLIENT SECRET !!!',
    baseApiUrl: '',
    });
    const orderCloudEnhancer = createEnhancer({ client });
    About this step

    We recommend you moving the OrderCloud credentials to environment variables rather than hard-coding them in the front-end app.

  5. Add the following code:

    await enhance({
    composition,
    enhancers: new EnhancerBuilder().parameterType(
    ORDERCLOUD_PARAMETER_TYPES,
    orderCloudEnhancer
    ),
    context: {},
    });
    About this step

    This registers the enhancer to be used for any occurrence of the OrderCloud Product Query parameter.

Next steps

Now, the parameter value in the composition is mutated to include the field values for the OrderCloud products returned when the search runs (instead of just being settings).

This parameter type allows a Uniform user to select one or more OrderCloud products.

Add parameter to component

In order to allow a user to select products from OrderCloud, you must add a parameter to a component. The parameter is used to store the identifier to the selected products when the user selects one or more products.

  1. In Uniform, navigate to your component.

  2. Add a new parameter using the parameter type OrderCloud Product Search.

  3. The following values can be specified:

    NameDescription
    CatalogsThe catalog where the products are defined.
    Product categoriesAfter you select a catalog, a list of product categories is displayed. By default, no categories are selected, which means that any kind of products can be selected. If you want to limit the types of products that can be selected, click one or more of the product categories listed.
    Allow multiselectIndicates whether the user can select only one product (the default), or more than one product.
    Display field (optional)In Uniform, this parameter type displays a list of products. By default, the product name is displayed. This field lets you change that so a different product property is displayed.
    RequiredIndicates whether the value is required when the component is used.
    add-parameter-to-component
    OrderCloud Product Search parameter configuration.

Edit parameter value

When you use a component with a OrderCloud Product Search parameter, by default no product will be selected. You are prompted to select a product (or products, if you have allowed multi-selection).

  1. Click Select.

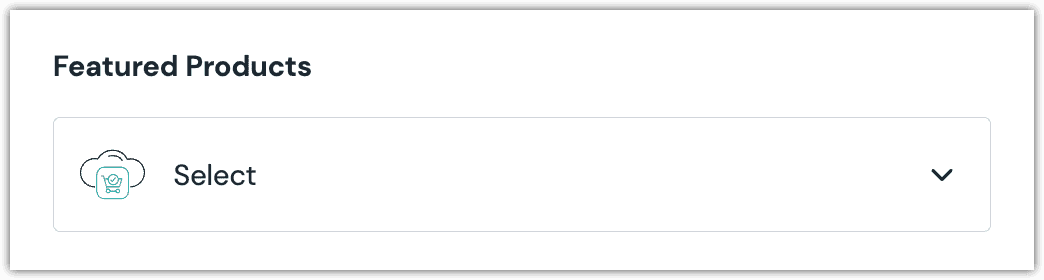

    edit-value-default
  2. Click the product(s) you want to select.

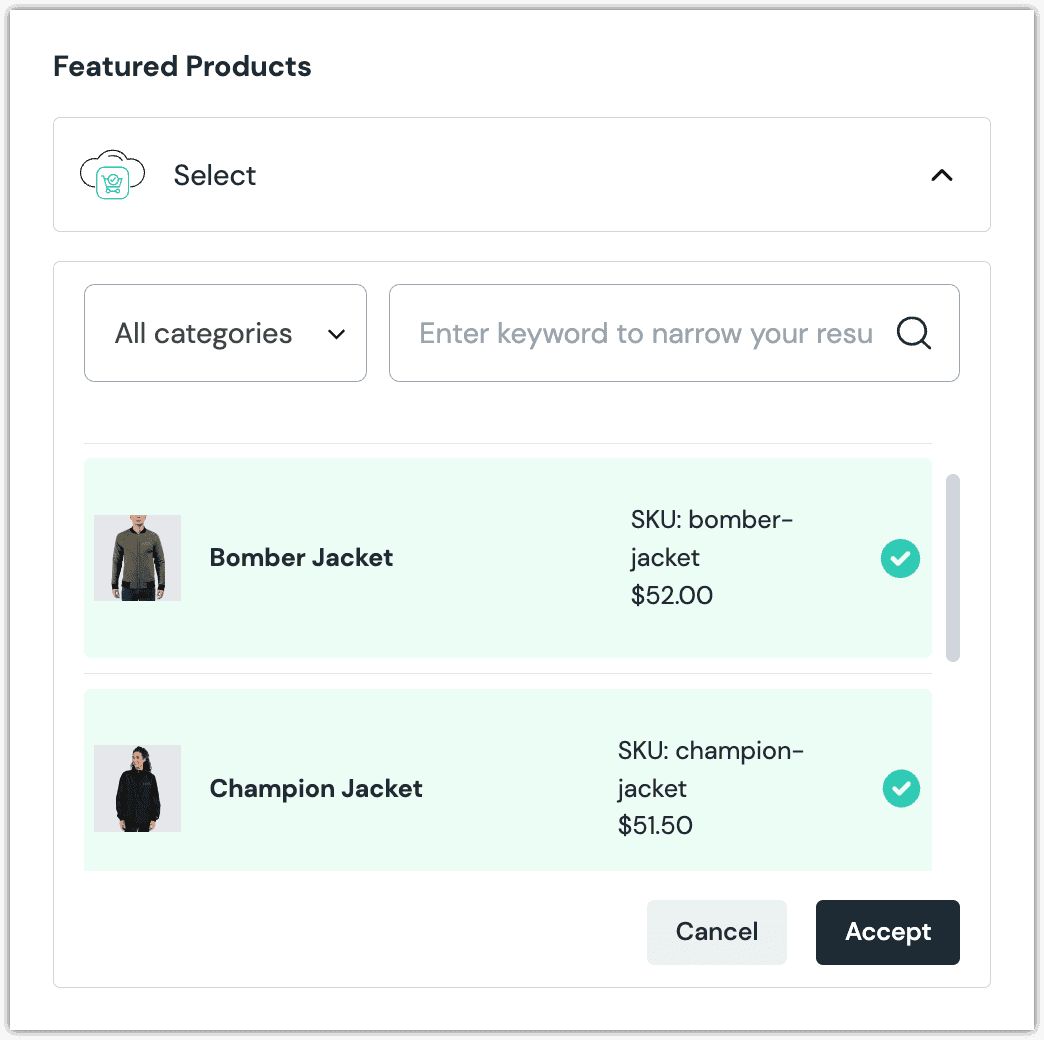

    edit-value-filters
    About this step

    A couple of filters are available. The dropdown allows you to filter by category. The text box allows you to filter by product name (note: this filter is case-sensitive and only matches on the entire product name).

  3. Click Accept to save your selection.

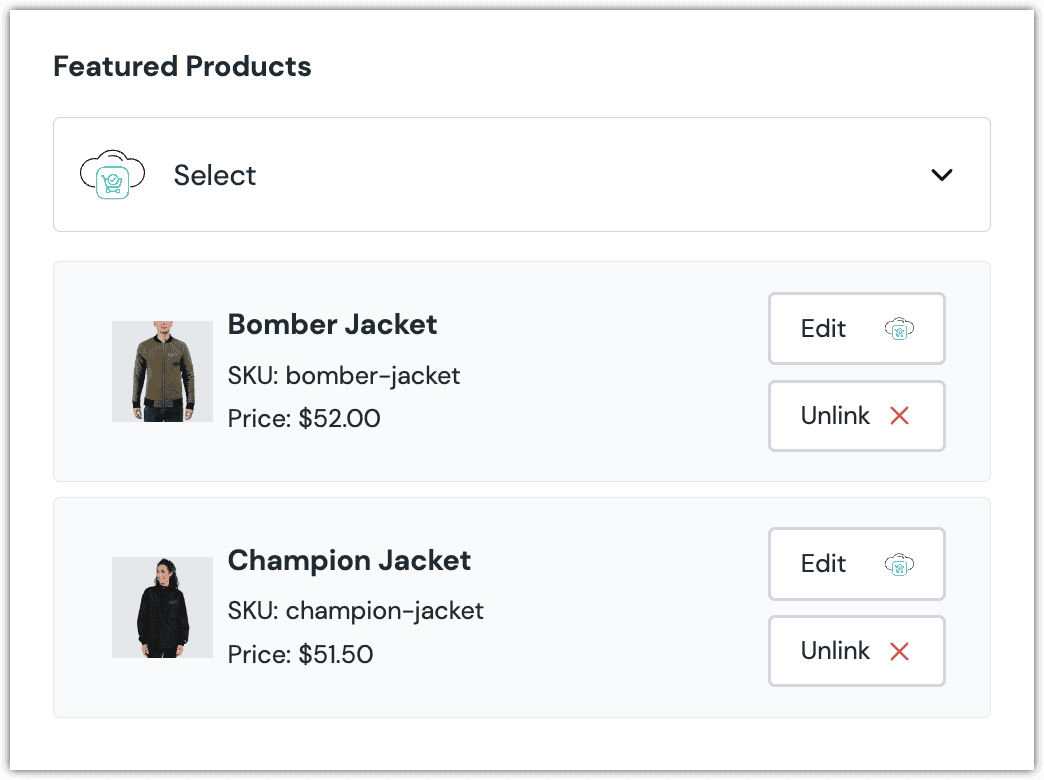

    edit-value-saved
    About this step

    After your selected is saved, you are presented with the following options:

    • If you want to edit the selected product in OrderCloud, click Edit.
    • If you want to unselect the product, click Unlink.

Configure an enhancer

This parameter type uses the same enhancer as the OrderCloud Product Query parameter type.

note

The following is an example of what Uniform stores for the parameter.

{
"type": "ordercloud-product-search",
"value": {
"products": [
{
"id": "######################",
"categoryIds": [
"######################"
]
},
{
"id": "######################",
"categoryIds": [
"######################"
]
}
]
}
}
